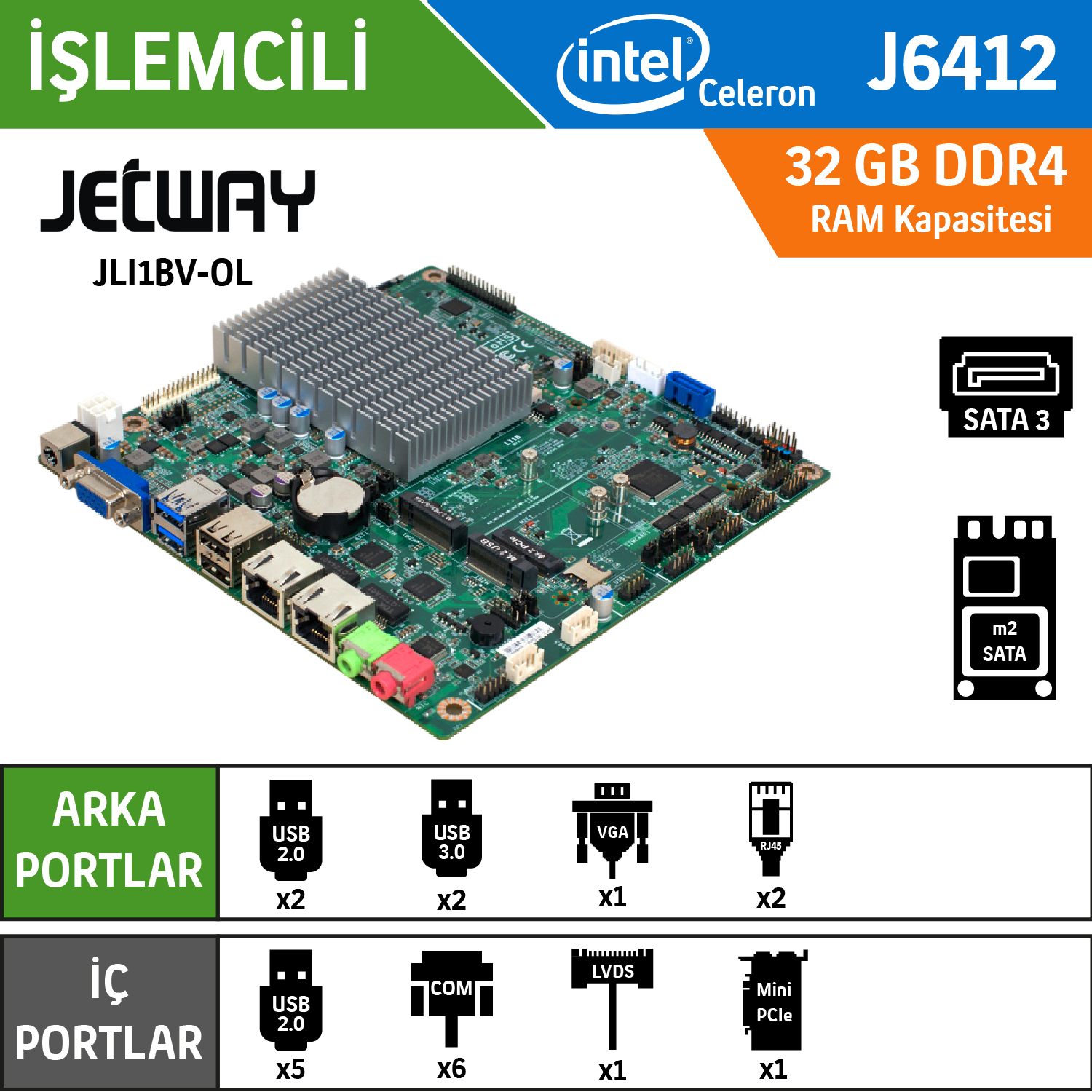

Jetway IPC JLI1BV-OL J6412 CPU, DDR4 UP TO 32GB, 2* 2.5GbE Anakart

Model

– JLI1BV-0L
– JLIBV-0L2 (TPM2.0)

Form Factor

– ITX (170 * 170mm)

Processor System

– Intel® Elkhart lake J6412 Quad Core MCP SoC Processor
– JLI1BV-00 (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
– AMI 128M Flash ROM

Memory

– 1* DDR4 3200MHz SO-DIMM up to 32GB

Storage

– 1* SATAIII (6.0 Gb/s)
– 1* M.2 M-key (2242/2280, SATA or NVMe- PCIe x2)

Expansion

– 1* M.2 E-key (2230, support WIFI/BT Module)
– 1* M.2 B-key (3042/3052, support 4G/5G Module)
– 1* Nano SIM card slot

Ethernet

– 2* Intel® i225V 2.5GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz, Co-lay HDMI)
– 1* LVDS (Max Resolution: 2560×1600@60Hz, Co-lay eDP)
– 1* eDP (Max Resolution: 4096×2304@60Hz, Co-lay HDMI)
– Support Triple Displays

Audio

– Realtek HD Audio
– 3W Speaker Amplifier

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Internal I/O

– 5* USB2.0
– 2* RS232/422/485
– 4* RS232
– 1* SATAIII, 1* SATA Power
– 3* M.2 (M key + E key + B key)
– 1* GPIO (8 bit, 5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_ Audio
– 1* Speaker
– 1* TPM2.0 (Option)
– 1* CPU FAN

External I/O

– 1* VGA
– 2* RJ45
– 2* USB3.1 (Gen. 1)
– 2* USB2.0
– Line-out
– MIC
– 12V DC-in

Power

12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Windows 11, Linux

Warranty

– 2 Years Limited Warranty
